In its relentless pursuit of less invasive procedures, smarter drug delivery and more powerful diagnostic tools, the medical industry faces a constant challenge: how to fit more functionality into increasingly smaller spaces. The answer to this challenge often lies not in the lab of a biochemist, but on the factory floor of a specialized manufacturer. The unsung hero of this miniaturization revolution is microfabrication.
This advanced manufacturing process is pushing the boundaries of what is possible to create the tiny, complex, life-saving components that are at the heart of the next generation of medical devices.
What is Micro-Molding?
Micro-molding is not just plastic injection molding on a smaller scale. It is a distinct discipline that focuses on producing plastic components with micron-scale tolerances, features thinner than a human hair, and part weights measured in milligrams.
The distinction is critical:
Macro-Molding: Produces a syringe barrel.
Microfabrication: The production of tiny, complex valves inside syringes that control drug flow with pinpoint accuracy.
This leap in precision requires overcoming unique physical challenges, including the behavior of molten polymers at the microscale, extreme precision in tooling, and handling parts that are invisible to the naked eye.
Why the Medical Industry Relies on Micro-Molding?
- The Rise of Minimally Invasive Surgery (MIS): Procedures in cardiology, neurology, and endoscopy require instruments to be incredibly small and flexible to navigate through arteries and narrow pathways without causing trauma. This requires microfabricated components such as catheter tips, guide wire cores, and micro lenses for endoscopic cameras.
- Advanced Drug Delivery: The era of “smart” drug delivery systems—such as wearable insulin pumps, implantable devices, and targeted therapies—relies on micro-pumps, micro-valves, and gears to dispense precise doses of medication. Micro-molding makes these complex mechanisms possible.
- The Lab-on-a-Chip (LOC) Revolution: Point-of-care diagnostics aim to run complex tests from a single drop of blood. Microfluidic chips, essentially tiny laboratories etched onto a plastic substrate, use microchannels and chambers to move and analyze fluids. The chips are produced almost exclusively by microfabrication.
- Patient Comfort and Compliance: Smaller devices are more comfortable for patients. Think of virtually invisible hearing aid components, compact continuous glucose monitors (CGMs), and compact injector pens. Microfabrication enables quality-of-life miniaturization.
The Hallmarks of Medical Micro-Molding: Precision, Purity, and Traceability
Producing components for medical applications is not just about size; It’s about meeting the industry’s uncompromising standards.
Unmatched Precision and Repeatability: Medical micro-molders use all-electric presses for their superior control and clean-room compatibility. They employ scientific molding principles and use sensors inside the mold cavity to monitor pressure and temperature in real-time, ensuring that every part is perfect.
Cleanroom Manufacturing: To prevent contamination, micro-molding for implantable or life-sustaining devices is conducted in ISO 7 (Class 10,000) or ISO 8 (Class 100,000) cleanrooms. Often, the entire molding machine is housed within this controlled environment.
Biocompatible Materials: Micro molders are experts in processing high-performance, medically approved polymers. This includes everything from biocompatible plastics like PEEK and Polycarbonate to liquid silicone rubber (LSR) for soft-touch components and even innovative bio-absorbable polymers that dissolve in the body after healing.
Full Traceability: Regulatory compliance (FDA, MDR) is paramount. Each batch of resin, each machine parameter, and each quality check is digitally recorded and linked to a specific production lot. This creates an immutable digital pedigree, allowing for complete traceability from raw material to finished device

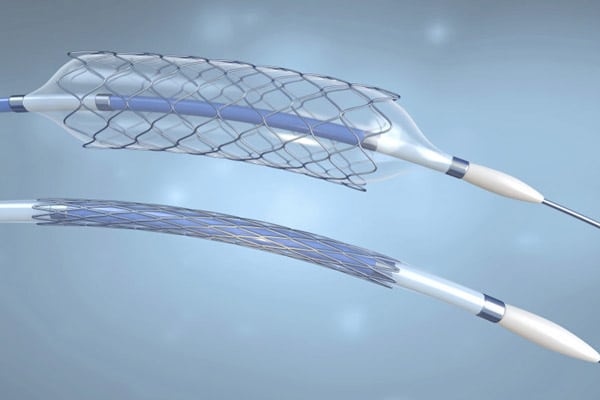

Neurovascular Devices*
Medical Micro Molding Applications
Neurovascular Devices: Tiny coils, stents and flow diversion devices for treating brain aneurysms are delivered through microcatheters made from micro-molded components.
Ophthalmic Implants: Delivery systems for implantable lenses and drug-eluting inserts for chronic eye diseases require microscopic parts with flawless accuracy.
Surgical Robotics: The robotic surgical system’s twisted instruments contain a multitude of micro-molded gears, joints, and connectors that allow for unparalleled dexterity.
Connected Health Wearables: The sensors and microfluidic systems inside modern health monitors that track vital signs rely on microfabricated parts.
Conclusion
Microfabrication is much more than a manufacturing process; It is a critical enabler of modern medicine. By mastering the art of microscopy, this sophisticated field provides the physical platform on which medical innovation is built. It allows engineers and doctors to turn groundbreaking ideas into tangible devices that heal, diagnose and improve human lives on a scale once unthinkable. As medical technology continues to strive for smaller, smarter, less invasive solutions, microfabrication will undoubtedly remain at the heart of this silent revolution.
